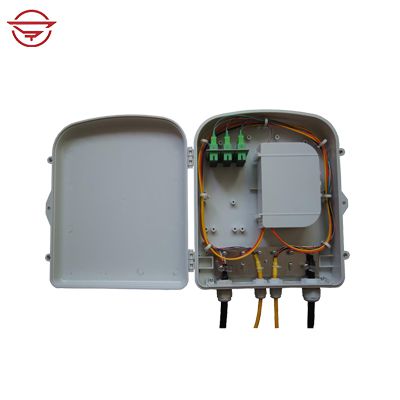

FTTX Terminal Box

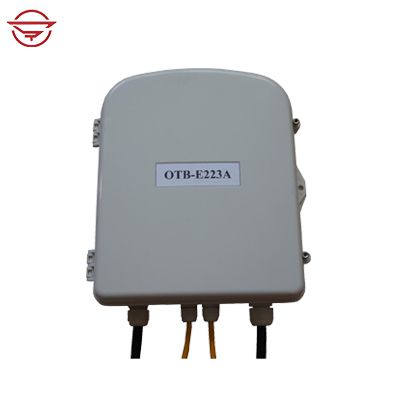

OTB-E223A
1.Applications
Applicable for the FTTX project and provide mechanical protection for fiber management system that includes the functions of splicing, patching and passive component integration.
The boxes are typically used on walls inside the customer’s premises in the termination part of the access network.
2.Features & Benefits
? High quality engineering ABS plastic construction
? Available able for indoor using.
? Hinge structure with two screw lock and one standard lock hole
? Flip design for the splice tray, easy for operation.
? Maximum 24pcs SC adapters are applicable.
? Cable ports: 6pcs (2*PG19+2*PG13.5+2*PG9)
3.Specifications
Type | Dimension (mm) | Cable ports | Number of the trays | Splice capacity of each tray | Number of the Adapters |
OTB-E223A | 265.1x299.2x95.4 | Max. 6 | Max. 5 | 6f (single layer) 12f (double layer) | Max. 24 |
