1. Product Description:

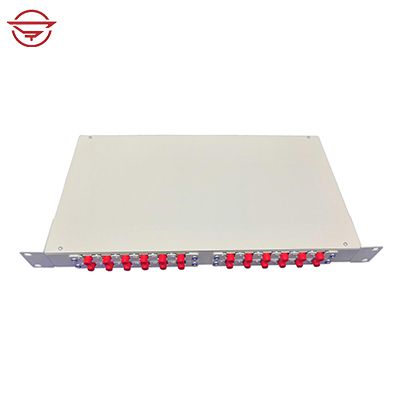

ODF-RF1U is a fixed type fiber optic patch panel. It is 1U height, 19inch rack mounted, max. 24 fibers.
It is made of cold roll steel, used in fiber optic cabinet for optical fiber splicing, cable management and cable connection.
2. Features:
Reasonable structure, convenient for using
Material: Cold-rolled steel, electrostatic powder painting.
Color: black or grey white
Plastic adapter plate suitable for SC simplex, FC simplex, LC duplex adapter
Splice tray qty: 1pc, 24 fibers
Fiber capacity: max. 24 fibers
Inside with cable fixing kit, rack mounted for 19inch cabinet
3. Specification:
| Model | Splice tray Qty | Capacity | Dimension (mm) | Material |
ODF-RF1U | 1pcs | 24 fibers | 482*230*43.5 | Cold roll steel box, ABS plastic splice tray and adapter plate |
4. Accessories:
| Item | Name | Specification | Unit | Qty |
1 | Heat shrinkable protection sleeve | 60*3.0*1.5mm | PCS | As per using qty |
2 | Cable tie | 3*120mm white | PCS | 5 |
For details, please contact us.
