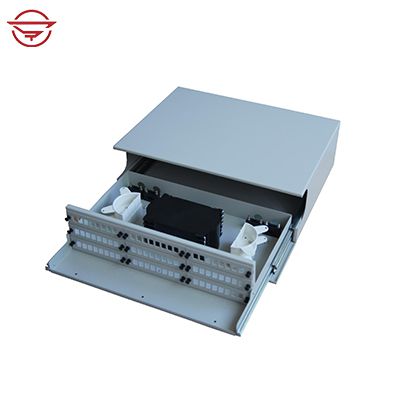

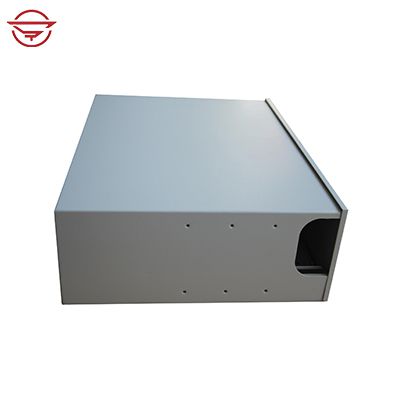

Slidable Rack-mounted ODF

ODF-RS72-A

Description:

It is made of cold-roll steel box, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. And it has metal sliding fittings with self-locking functions prevent the drawer from falling when moved.

Features:

v Standard size, light weight and reasonable structure

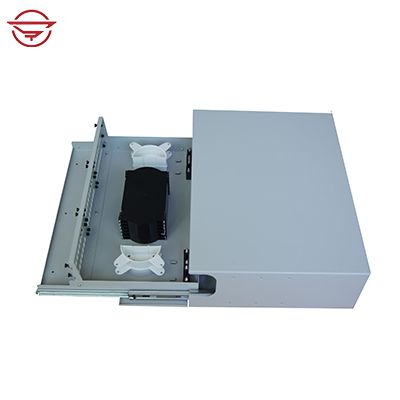

v Slide out drawer for easy cable management

v FC, SC, ST, LC adapter patch panel for option

v Front access panel design for easy operation

v Suitable for 19’’ or 23’’ standard optic distribution cabinets

v With metal front cover

v 6pcs splice trays (each 12fibers)

v 9pcs adapter plates (each 8pcs adapter ports)

v Max. capacity 72 fibers

v 4 fiber cable entry ports at rear side

v White or black color

Specification:

Application:

Telecommunications

Fiber to the home (FTTH)

LAN / WAN

CATV
