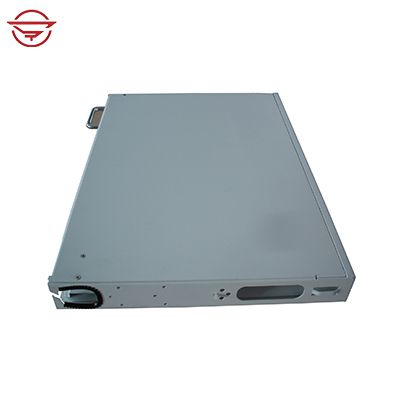

Rotary Type Fiber Optic Patch Panel

ODF-RW24-A

1.Product Description:

It is made of cold roll steel, splice tray can be rotated out. It could be pre-installed with various kinds of fiber optic adapters and pigtails. It is ideal for indoor fiber optic cables connection storage, distribution and management.

2.Features:

2 Standard size, can be rack-mount and wall-mount

2 Splice tray inside changeable

2 Can be used in 19'', 23'' standard distribution frame

2 Suitable for ribbon and single fiber

2 Various panel plate to fit different adapter interface

2 Front mark on the plate is easy for identification and operation

3.Specification:

Model: ODF-RW24-A

Material: Cold-roll steel

ABS material splice tray: OST-010G

1pc splice tray; each splice tray 24 cores

Dimension: 482x341x44mm

Capacity: 24 cores

4.Application:

2 Telecommunications subscriber loop

2 Fiber to the home (FTTH)

2 LAN/WAN

2 CATV
